BSM-FC30 zirconia fast sintering furnace is specially designed for completing the high-temperature sintering for all zirconia materials . It adopts unique“Sandwich” thermal insulation technology, achieving long-lasting heat preservation and energy saving. And It offers customers with easy & efficient sintering experience with one button operation and 3 hour fast sintering, and at the same time guarantees excellent sintering performance with its use of high purity silicon carbide heating elements and circular-shape heating design.

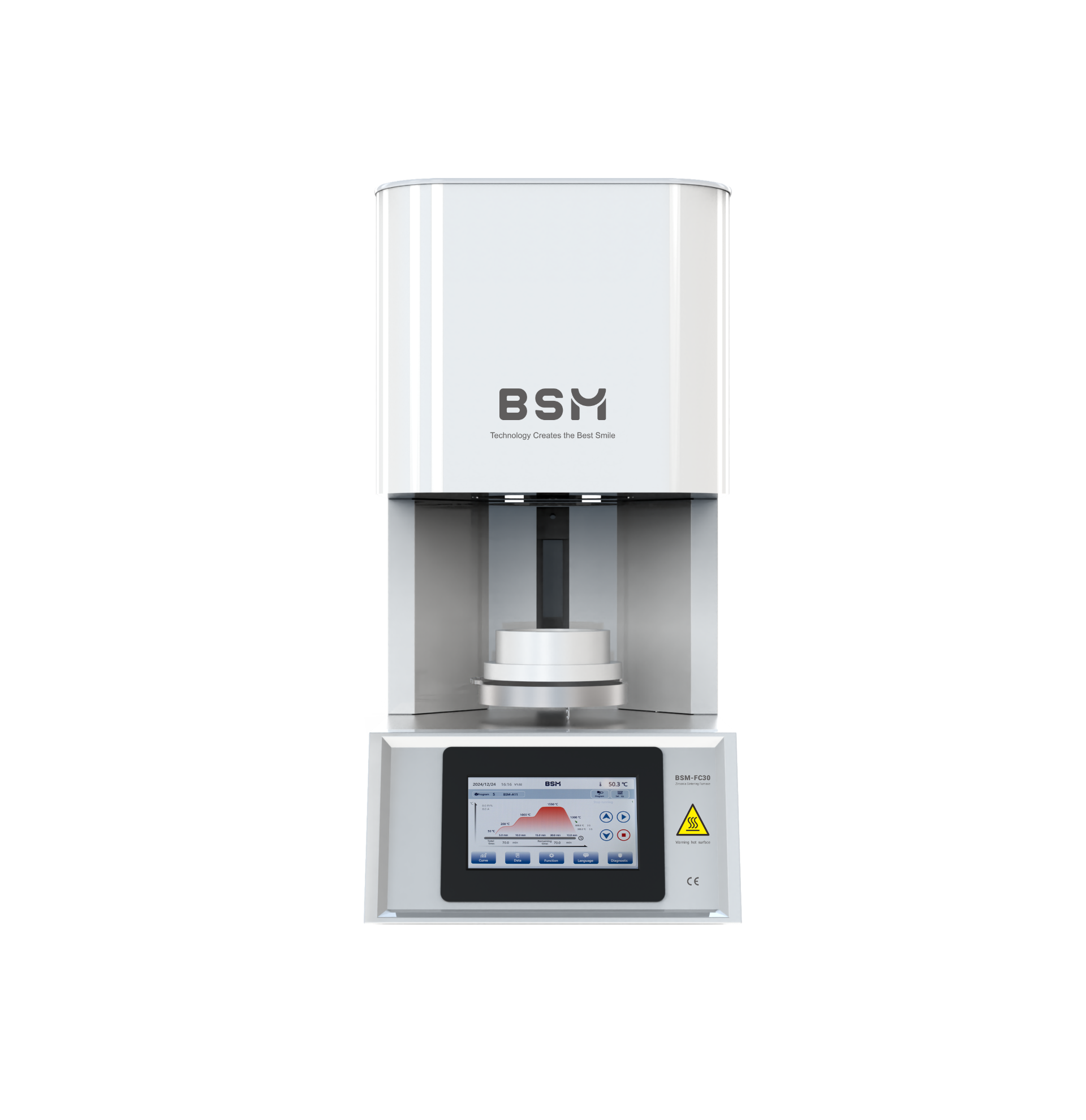

BSM-FC30
Zirconia Fast Sintering Furnace
Easy Efficient Energy Saving Excellent Performance

Product Advantages
-
Easy Operation
-
One-button operation with LCD touch screen
Intelligent lifting, enabling easy and unloading
-
Energy Saving
-
Unique“Sandwich”thermal insulation technology, achieving high-tech insulation, long-lasting heat preservation and energy saving
-
Efficient Sintering
-
3H fast sintering, 63% less than traditional sintering time.
2 sintering modes: fast& standard, free shift.
100 customized sintering programs.
-
Excellent Performance
-
High-purity silicon carbide heating elements, ensuring sintering restorations free of contamination.
Circular-shape heating design achieving homogeneous temperature distribution,guaranteeing the finished restorations with accurate color and great translucency.
Technical Data
-
Application areaZirconia sintering
-
Dimension(W.D.H)340*700*490mm
-
Sintering spaceΦ90mm*50mm
-
Number of sintering trays1
-
Diameter of sintering tray74mm
-
Heating elementHigh purity silicon carbide
-
No.of heating elements4
-
Power supply220V/50Hz
-
Max withstand temperature1600℃
-
Working temperature≤1550℃
-
Operation7 color touch screen
-
Rated power3KW
-
Weight55kg
-
SensorHigh precision type-B thermocouple
-
Temp.control accuracy±3°C
-
Heating rate≤50°C/min
-
Max.customized programs100
-
Max.sintered resorations25 single crowns
-
Shortest sintering time3H(cooling time included)
-
Heating typeFast & Standard
