Product Introduction

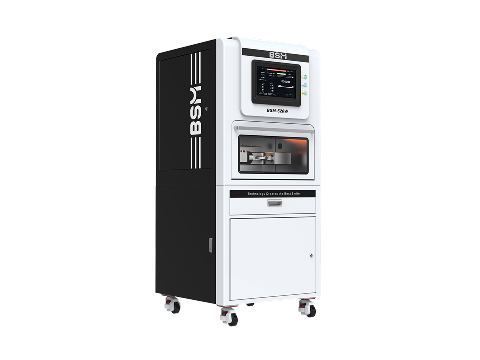

BSM-520W, a milling machine featuring excellent reliability, high precision, high efficiency, and intelligent processing, is well suited for the demanding processing of metal blanks. The solid gantry structure with core parts made of high-strength cast iron and the thermal symmetry structure design guarantee its excellent reliability. Equipped with 16 tools, the premium spindle, the smart CAM nesting system, and the intelligent touch screen, it achieves high efficiency easily.

Product Advantages

Capacity Boost

Multi-functional holders for seamless switching between titanium abutments, glass-ceramic blocks, and more

Optional holders for multi-unit glass ceramics and multi-brand abutments

Outstanding Precision

Full servo system, superior accuracy

±30° B-axis rotation range for precise undercut milling

Supports both internal and external thread machining.

Superior Stability

2.5 kW spindle with precision bearings

One-piece gantry design ensures high machining stability

Key components in high-strength cast iron minimize deformation

Thermally symmetric structure with automatic compensation ensures long-term accuracy stability

Efficient Processing

Milling speed:

Full contour posterior crown(TC4 14mm)≈20min

Coping (TC4 14mm)≈15min

3-unit full contour crown bridge(TC4 14mm) ≈40min

3-unit coping bridge (TC4 14mm) ≈30min

Frame (TC4)≈2h

Customized abutment(TC4)≈30min

Implant Bar≈3.5h

*Above data were obtained based on the BSM-520W milling of TC4 material.

Intelligent Configuration

16 burs with auto tool change & life management

13.3” intelligent touchscreen

Breakpoint resume & power-off protection

Low air pressure protection

Remote control

Efficient Processing

Milling speed:

Full contour posterior crown (TC4 14mm) ≈ 20min

Coping (TC4 14mm) ≈ 15min

3-unit full contour crown bridge (TC4 14mm) ≈ 40min

3-unit coping bridge (TC4 14mm) ≈ 30min

Frame (TC4) ≈ 2h

Customized abutment (TC4) ≈ 30min

Implant Bar ≈ 3.5h

*Above data were obtained based on the BSM-520W milling of TC4 material

Technical Data

Dimension(W- D- H)

800mm*880mm*1780mm
Weight

500kg
Number of axis

5
Motor

AC servo
Spindle power

2.5KW
Spindle speed

60000RPM
Cooling system

Automatic water-cooling spindle
Voltage/power

AC220V/4KW
Built-in-burs

16
Automatic tool life monitoring

✓
Automatic tool length detection

✓
Rotation angle

A axis: 360°, B axis: -30°~ + 30°
Environmental temperature

5℃~40℃
Air pressure

＞0.65Mpa
External Control Linkage

Water pump
Remote control

✓
Fields of application

Wet milling
Monitor

13.3″LCD touch screen
