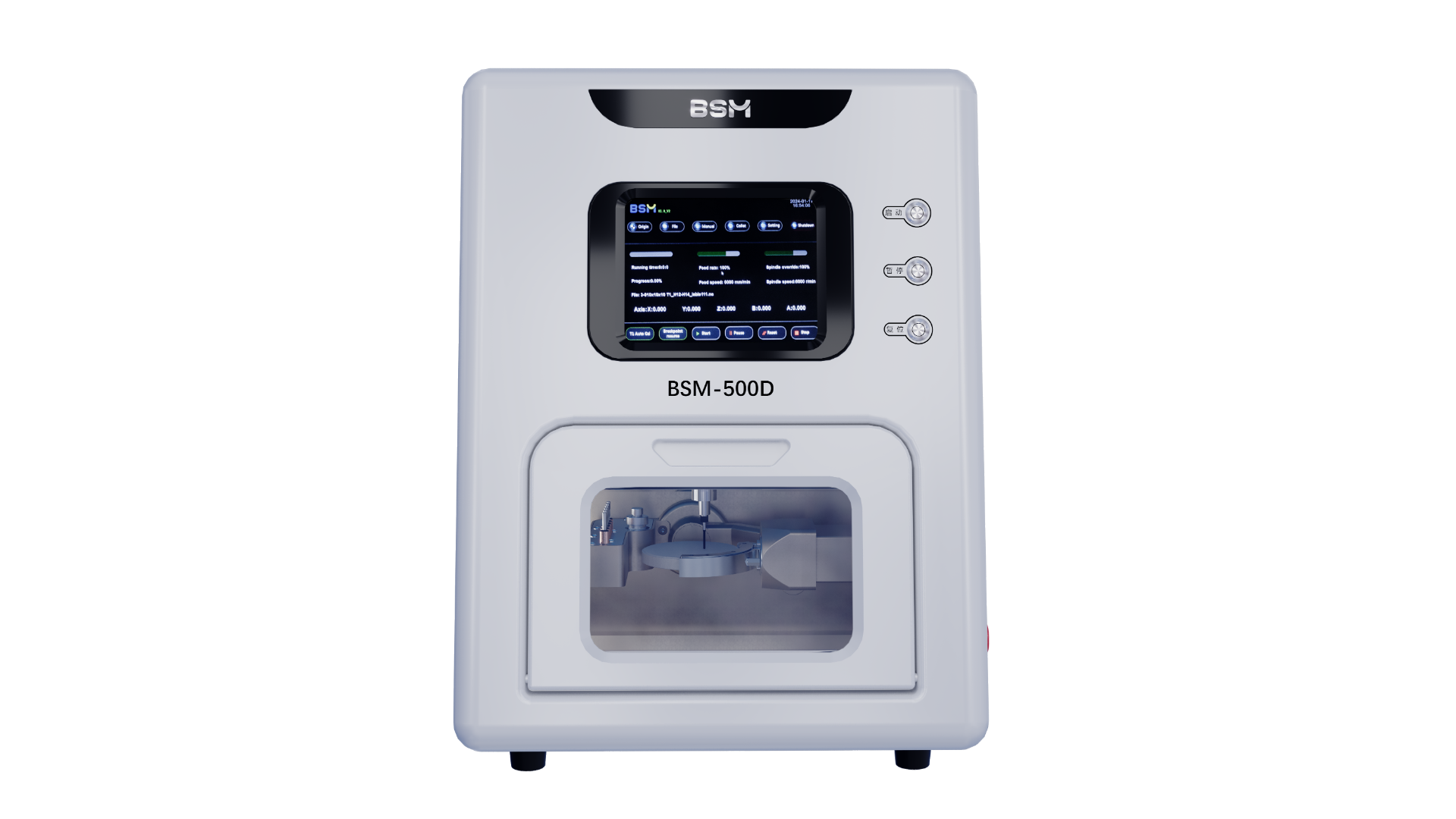

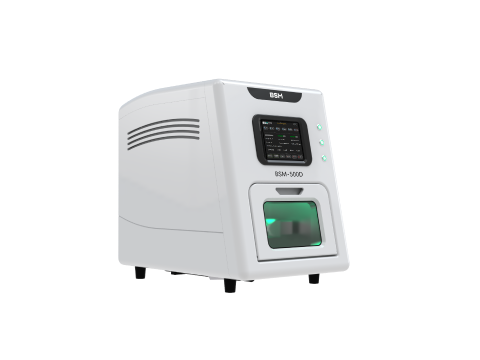

500D Dry Milling Machine
BSM-500D, with strong & reliable gantry structure design and 5-axis simultaneous linkage, features excellent reliability, intelligent processing, efficient and precise milli1g at 5um milling accuracy. With automatic working-suspension function in the occurrence of accidental door opening during processing, it guards the safety of the operator to avoid physical injury. Built-in working status indication light provides the intellligent monitoring of the milling operation. Equipped with a compact design but powerful spindle from Germany, it is an excellent choice for not only dental labs but also chairside practices.

Product Advantages

Precise

Precise

Digital servo system with high resolution

Milling accuracy & repetition accuracy ±0.005mm

Automatic calibration

Intelligent

Intelligent

Automatic tool changer

Power-off protection & break-point resume

Easy operation with intuitive LCD touch screen

Automatic working-suspension function

Intelligent working status indication light

Reliable

Reliable

Heavy industrial quality and aerometal structure

The gantry structure and thermal expansion symmetric design ensure excellent stability

High-frequency integrated ionizer neutralizes the electrostatic charge of chips(PMMA/plastics)

Efficient

Efficient

Powerful spindle with speed up to 60000RPM

1/3 holder: boosts disc production by 20%

Milling speed:

Coping:11 mins(Zirconia), 5 mins(Wax)

Crown:16 mins(Zirconia), 6 mins(Wax)

Frame:45 mins(PMMA/PEEK)

*Above data were obtained based on the BSM-500D milling of Aconia HT+ 14mm.

Technical Data

  • Dimension(W*D*H)
    480mm*700mm*645mm
  • Weight
    90kg
  • Fields of application
    Dry milling
  • Number of axes
    5
  • Cooling system
    Air cooling spindle
  • Repetition accuracy
    ±0.005mm
  • Spindle speed
    Up to 60000 RPM
  • Touch screen control
    8''LCD Touch Screen
  • Built-in burs
    6
  • Automatic tool changer
    Positive
  • Voltage/Power
    220V/1KW
