BSM-520D

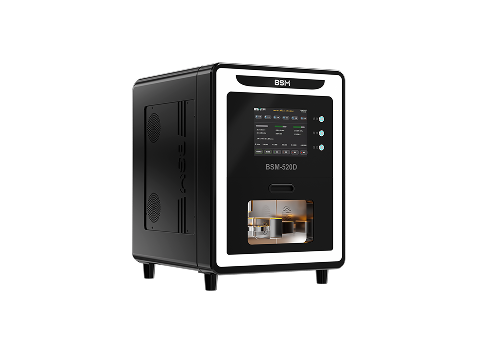

Milling Machine 520D




Product
Introduction


BSM-520D is a 5-Axis dry-milling machine for dental CAD/CAM system with wide range of materials, featuring high accuracy, durable stability and excellent compatibility. It is an ideal choice for high-precision restorations including bridges, frames, splint, abutment,base and complicated operations like zirconia perforation. Equipped with premium spindle, imported core parts, smart CAM nesting system and intelligent touch screen, BSM-520D offers better disc handling, wider material capabilities, automatic tool change to deliver a higher efficiency.

















Product Advantages







                                High Compatibility

High Compatibility






B Axis wide rotation range


Indications: crown, bridge, inlay, onlay, abutment, veneer









                                Intelligent Processing

Intelligent Processing






Smart CAM nesting strategy


Integrated PC with 9.7 inch intelligent touch screen


Automatic changer for 4 tools with haptic tool detection and tool breakage monitoring









                                Higher ROI

Higher ROI






1/3 holder, simplified operation;increased 20% production per block


2-second block insertio


Special dust-proof design ensures long lifespan









                                Excellent Reliability

Excellent Reliability






Premium spindle with 60,000RPM


Heavy industrial quality and aerometal structure


The gantry structure and thermal expansion symmetric design ensure accuracy stability









                                High Accuracy* High Efficiency

High Accuracy* High Efficiency






Digital servo system with high resolution, ±0.005mm repetition accuracy.


±0.01mm installation accuracy for per axis


90°vertical processing


Milling speed: zirconia posterior anatomic crown ≈17' (Aconia HT+ 14mm); zirconia 3-unit crown bridge ≈24' (Aconia HT+14mm)
















Technical Data








  •

    Dimension(W*D*H)


    570mm*680mm*780mm


    •

  •

    Weight


    130kg


    •

  •

    Fields of application


    Dry milling


    •

  •

    Number of axes


    5


    •

  •

    Cooling system


    Air cooling spindle


    •

  •

    Repetition accuracy


    ±0.005mm


    •

  •

    Spindle speed


    Up to 60000 RPM


    •

  •

    Touch screen control


    9.7'' LCD touch screen


    •

  •

    Built-in burs


    6


    •

  •

    Automatic tool changer


    Positive


    •

  •

    Voltage/Power


    220V/3.9KW


    •
