Product Introduction

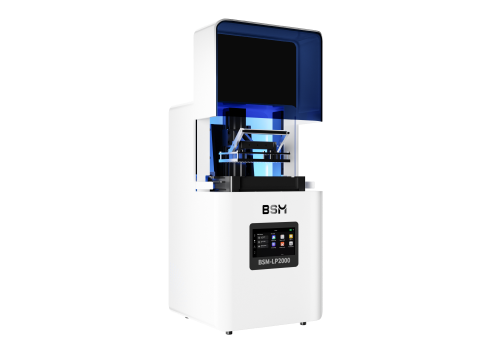

The BSM-LP2000 is a dental 3D printer specifically designed for dental implantology and fixed prosthodontic applications. It is ideal for printing dental models and is perfectly suited for use in dental clinics and dental laboratories.
This printer utilized industrial-grade LCD 3D printing technology, delivering exceptional precision and efficiency in model production. It is particularly well-suited for users with high demands for detail accuracy and productivity improvements. The BSM-LP2000 excels in minimizing modeling errors, reducing material waste, lowering production costs, and consistently delivering outstanding performance.

Product Advantages

High Precision

8.9-inch 4K LCD Screen: With an individual pixel size of 50 µm.

Industrial-Grade High-Precision Motion Module: Delivers a repeatable positioning accuracy of ±2 µm, ensuring smooth surfaces and finely detailed prints with high fidelity.

Exceptional Printing Accuracy: Achieves a forming accuracy of ±38 µm, with scanning matching accuracy reaching up to 95%.

High Stability, No Deformation

Constant Temperature Printing Chamber: Enhances material fluidity and stability, avoiding interference from environmental temperature fluctuations.

±50 µm Accuracy with 98% Consistency Across Multiple Batches: Delivers uniform results for repeated prints.

Minimal Deformation Post-Curing: Retains a 97% overlap rate after 7 days, ensuring long-term stability.

Large Build Volume, High Efficiency

LCD Rapid Prototyping Technology: Delivers fast curing speeds and high production efficiency, minimizing waiting times.

192×120 mm Large Build Volume: Supports simultaneous printing of up to 10 half-arch models (laid flat), enabling batch production to meet multiple order demands.

Printing Speed:

20–25 mm/h at 50 µm layer thickness

40–50 mm/h at 100 µm layer thickness

Print Time Examples:

10 lower jaw half-arch models ＜60 minutes

8 implant surgical guide models ＜30 minutes

Easy Maintenance: The unique patented resin tank design enables easy replacement of the release film, simplifying the process.

Smart Layout: Features intelligent automatic layout, anti-aliasing, one-click supports, hollowing feature, bottom tolerance compensation, Boolean operations, label addition, cutting, and support for 19 languages.

Technical Data

Dimensions(w/D/H)

380*350*680mm
Weight

26kg
Build Volume

192*120*110mm
Light Source Type

COB UV Light source
Pixel Size

50um
Resolution

3840x2400(4K)
Printing Speed (50um)

50-100 um
Module Accuracy

Z Axis :5um, XY Axis:75um
User Interface

7-inch CapacitiveTouchscreen/USB Drive
Printable Materials

Dental models, orthodontic materials, surgical guide materials, etc.
Applicable Print Types

Half dental models, implant surgical guides, Gingival, etc.
Power supply

220V/350W
Humidity

<60%
Temperature

20°C-30°C
Lighting Conditions

Avoid direct sunlight
